Features

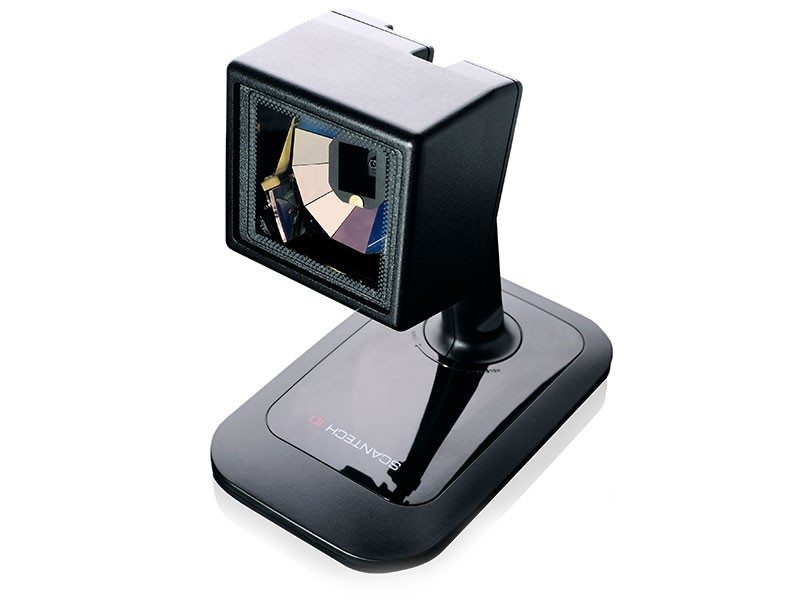

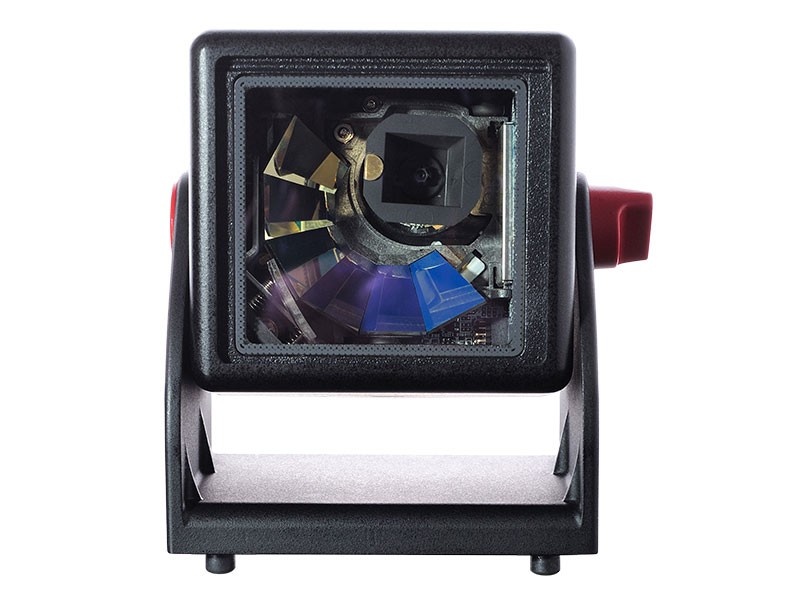

The Scantech ID Mica M-9030 is a very compact and high performance omni-directional laser barcode scan engine ideal for built-in and Original Equipment Manufacturer (OEM) applications. With 24 scan lines in 6 scan directions and 2000 scans per second, the Mica M-9030 provides an outstanding scan performance and makes it very easy to scan all common type 1D barcodes, including GS1 DataBar, independent of its orientation. The optimized compact design makes it very easy to integrate the Mica M-9030 in many built-in and OEM applications like kiosks, ATM’s, return vending machines, price verifiers and access control terminals. The Mica M-9030 has a multi interface, user upgradeable software and auto-sense which saves costs and improves life time. If you are looking for a compact, easy to integrate barcode scan engine with an outstanding scan performance, then the Mica M-9030 is the answer.

  • Most compact omni-directional laser barcode scan engine in its class.
  • Optimized design for built-in and OEM applications.
  • Reading all common 1D barcodes, incl. GS1 DataBar, regardless of its orientation.
  • Scantech ID STAR reconstruction software for reading of fragmented and damaged barcodes.
  • High first scan rate.
  • Auto-Sense function, which saves power and improves life time.
  • 1D Codes
  • GS1
  • MICA M-9030

    MICA M-9030
  • Compare to

Tech Specs

Environmental

Ambient light
Up to 4,800 Lux
- Up to 7,000 Lux Up to 6,400 Lux Up to 4,800 Lux

Specifications

Dimension(WxDxH) Light Source Depth of Field Resolution Scan Rate Indicators Print Contrast Ratio Scan Pattern EAS
67x62x46mm (body only) 650±10nm VLD Up to 230mm@13mil/0.33mm, PCS90%, Code 39 5mil/0.127mm 2,000 scans ± 5% Beeper and LED 25% 6 direction scan field, 24 lines scan pattern N/A
- 152x152x90mm 152x152x90mm Dimension(WxDxH) 116x84.5(upper)x164 mm / 116x100(bottom)x164 mm - 650±10nm VLD 650±10nm VLD 650nm ± 10nm Laser diode - Up to 250mm@13mil/0.33mm, PCS90%, Code 39 Up to 250mm@13mil/0.33mm, PCS90%, Code 39 Up to 240mm@13mil/0.33mm, PCS90%, Code 39 - 5mil/0.127mm 5mil/0.127mm - - - - 1350 scans - Beeper and LED Beeper and LED Beeper and LED - 25% 25% 25% - 7 directions scan field, 30 lines 7 directions scan field, 24 lines 5 direction scan field, 20 lines scan pattern, Single Line option - YES YES Yes

Electrical Characteristics

Interface Power
RS232, USB(HID, Virtual COM), KBW, Power USB (option) DC 5V @2A
- RS232, USB(HID, Virtual COM), KBW, Power USB RS232, USB(HID, Virtual COM), KBW, Power USB RS232, USB(HID, Virtual COM) - DC 12V @1.5A DC 5V@2A DC 5V @2A
Configuration Guide Datasheet Driver-OPOS Driver-Virtual COM E-Catalogue User's Manual
Download Download Download Download Download Download

Accessories

  1. Adaptor-5V(Small, Length=2.5m)

    • Adaptor-5V(Small, Length=2.5m)
    • P/N0104-SP00091
    • RemarkSwitch Power Adaptor 90-264V 5V/2A 90 degree 2.5m
    • Color-
  2. Cable-SID-Power USB(Length=3m)

    • Cable-SID-Power USB(Length=3m)
    • P/N0114-S801121
    • RemarkScantech ID RJ48+Power USB Straight black color 3m length
    • Color-
  3. Cable-SID-PS/2(Length=2m)

    • Cable-SID-PS/2(Length=2m)
    • P/N0114-SM02121
    • RemarkScantech ID PS2 MD6M + MD6F + RJ48 Straight Cable Black color 2m length
    • Color-
  4. Cable-SID-RS232(Length=2m)

    • Cable-SID-RS232(Length=2m)
    • P/N0114-SM01121
    • RemarkScantech ID RS232 DB9F + RJ48 Straight Cable Black Color 2m length
    • Color-
  5. Cable-SID-USB(Length=1.5m)

    • Cable-SID-USB(Length=1.5m)
    • P/N0114-SM04121
    • RemarkScantech ID USB + RJ48 Straight Cable Black color 1.5m length
    • Color-
  6. Mount-MICA Back Mount Plate

    • Mount-MICA Back Mount Plate
    • P/N618B712600D1000
    • RemarkQuantum-E Back Plate kits (only)
    • Color-
  7. Stand-MICA(High)

    • Stand-MICA(High)
    • P/N7184180203D0000
    • RemarkHigh Stand of MICA
    • Color-
  8. Stand-MICA(Small)

    • Stand-MICA(Small)
    • P/N7184170203D0000
    • RemarkSmall stand of MICA
    • Color-
