Features

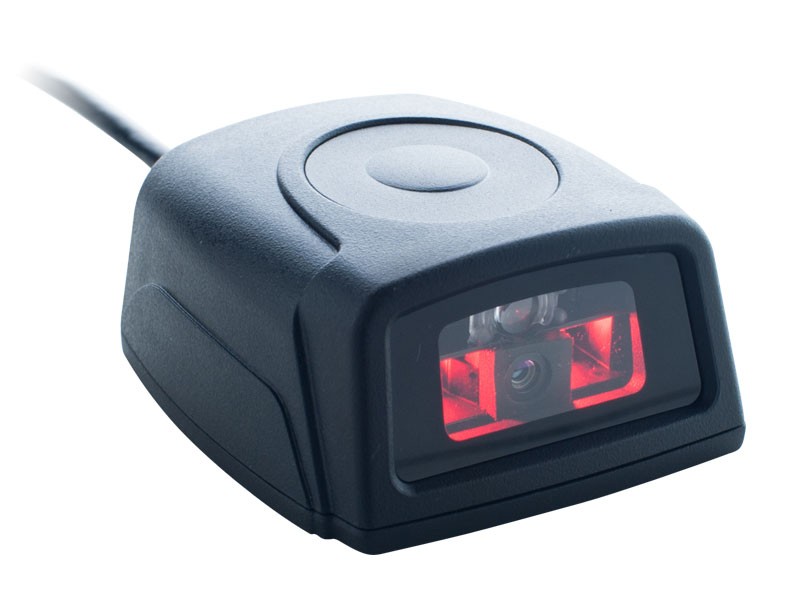

The FI710 is equipped with ultra-compact high performance 2D area imager bar code scanning engine, ideal for OEM applications in devices including POS, medical devices, kiosks, lottery terminals and access control devices, a stand option can be ordered to facilitate desktop hand-free reading options. The FI710 supports with up to 500mm reading depth of 1D and 2D bar codes, scan rate is up to 120 scans per second in linear emulation and 60 images per second in 2D area mode. It combines decode speed with unmatched motion tolerance to deliver an easy to use scanner with aggressive performance and offers uncompromised performance on current linear barcodes’ applications, it can emulate the operation as a linear imagers with scan rates up to 120 scans per second when decodes linear barcodes, which is more than three times faster than traditional 2D imagers. Everything has been done to simplify the integration of the FI710, compact size, multiple mounting possibilities and multiple interfaces selection, such as standard RS232 & USB-HID and USB Virtual COM port. The FI710 is built to match the most demanding scanning requirements, providing consistent scanning performance in total darkness to full sunshine and over a large temperature range.

  • Miniature imager provides comprehensive data captures.
  • Easily integrated with various OEM application while 1D and 2D barcode scanning.
  • Clear aiming frame that make barcode capture easily.
  • Center decoding utility to eliminate the need to position items precisely.
  • Lightweight and compact design is flexible for external application requirement.
  • Rugged casing that supports IP65 Dropping from 1.8m.
  • 1D Codes
  • 2D Codes
  • GS1
  • FI710

    FI710
  • Compare to

Tech Specs

Environmental

Ambient light
Up to 100,000 Lux
- - Up to 100,000 Lux - Works in any lighting conditions from 0 to 100,000 lux - 0 lux up to 100,000 lux. 0 lux up to 3,000 lux. 0 lux up to 3,000 lux. - 0 to 3000 lux, avoid direct sunlight - - - - - - - - - - - - Up to 100,000 Lux - - - - - - - - Up to 100,000 Lux - up to 100,000 Lux - - - Up to 1,500 Lux (direct sunlight) Up to 1,500 Lux (direct sunlight) Up to 1,500 Lux (direct sunlight)

Specifications

Dimension(WxDxH) Light Source Filed of View Depth of Field Scan Rate Indicators Print Contrast Ratio IP Rating
64.6x59.2x30mm 625±5nm Red LED 1D: 4mil/0.1mm; 2D: 8mil/0.2mm Up to 500mm@20mil/0.5mm, PCS90%, Code 39 60 images Beeper and LED 30% IP65
- - 69x56x27.7mm - Optical module 22.30mm W x 12.0 mm D x 12.0mm H Decoder board 37.0 mm W x 23.4 mm D - - - - - - - - - - - - - 25x20x11.5mm - - - - 69x56x27.7mm - 25x20x11.5mm - - - - - - 64.6x59.2x30mm - - - - Platen Size:88.90 mm x 80.01 mm / 3.50” x 3.15” Sensing Area:81.28 mm x 76.30 mm / 3.20” x 3.00” Assembly Dimensions:114.7 mm x 131.8 mm x 82 mm / 4.52” x 5.19” x .3.23" - - - - - 632±5nm Red LED - White light LED - White light LED - - - - - - - - - - - 632±5nm Red LED - - - - 625±5nm Red LED RED LED/ IR 632±5nm Red LED - - - - - - 632±5nm Red LED - - - - - 660nm Red LED 660nm Red LED 660nm Red LED - - - - Horizontal -55°, Vertical -35° - Horizontal – 55°, Vertical – 35° - - - - - - - - - - - Horizontal: 45° - - - - - - Horizontal: 45° - - - - - - - - - - - - - - - - - Up to 500mm@20mil/0.5mm, PCS90%, Code 39 - - - 280mm@20mil/0.5mm, PCS90% - - - - - - - - - - - Up to 500mm@20mil/0.5mm, PCS90%, Code 39 - - - - Up to 500mm@20mil/0.5mm, PCS90%, Code 39 - Up to 250mm@20mil/0.5mm, PCS90% - - - - - - Up to 500mm@20mil/0.5mm, PCS90%, Code 39 - - - - - Contact Type Contact Type Contact Type - - Smart detection, up to 500 scans 100-1000mm/sec 60 images per second - 60 fps (at full resolution) - - - - - - - - - - - Smart detection, up to 500 scans - - - - 60 images 100-1000mm/sec 100 scans ±10% - - - - - - Smart detection, up to 500 scans 100-1000mm/sec - - 100-1000mm/sec Min frame rate > 8fps 50-500mm/sec 50-500mm/sec - - - Beeper - Good read beep - Beeper - - - - - - - - - - LED x 1, Beeper x 1, Vibrator x1 Beeper - - - LED x 1, Beeper x 1, Vibrator x1 Beeper - Beeper - - - - - - Beeper and LED - - - - - - - - - - 30% - - - 30%@5mil/0.127mm - - - - - - - - - - - 25% - - - - 30% - 25% - - - - - - 30% - - - - - - - - - - N/A - - - - - - - - - - - - - - IP54 - - - - IP54 N/A - - - - - - - - IP65 - - - - - - - -

Electrical Characteristics

Interface Power
RS-232, USB (HID, Virtual COM) DC 5V
- - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB RS232, USB (HID, Virtual COM) - - USB or RS-232 wired cable a USB or RS-232 wired cable to a host - USB 3.0 Type A(Host) x3, USB 3.0 Type C(Device) x1, HDMI x1, Ethernet port x1, Power jack port x 1 - - - - - - - Module only: UART/USB (HID, Virtual COM) Module with interface board: RS232/USB/KBW - - - - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB Module only: UART/USB (HID, Virtual COM) Module with interface board: RS232/USB(HID, Virtual COM) - - - - - - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB USBx3,HDMIx1,RS232x1,LANx1(for Ethernet or PoE),GPIO x 2 (2-pin signal output, 2-pin power output) - TTL/KBW/RS232/USB USB 2.0 - - - - - DC 5V - - - - - - - - - - - - - - - DC 5V - - - - DC 5V - DC 5V - - - - - - DC 5V - - - - USB Host, Voltage Level: 4.40V to 5.25V; 4.4via USB; full scanning > 300mA, typical > 250mA - - -
Configuration Default Card Configuration Guide Datasheet E-Catalogue Specification
Download Download Download Download Download

Accessories

  1. Adaptor-5V(180 degree)

    • Adaptor-5V(180 degree)
    • P/N0104-SP00081
    • RemarkSwitch Power Adaptor 90-264V 5V/2A DC Plug 180 degree
    • Color-
