A Magnetic Stripe Reader module provides you with a cost-effective magnetic stripe reader to satisfy the POS industries needs.
Features

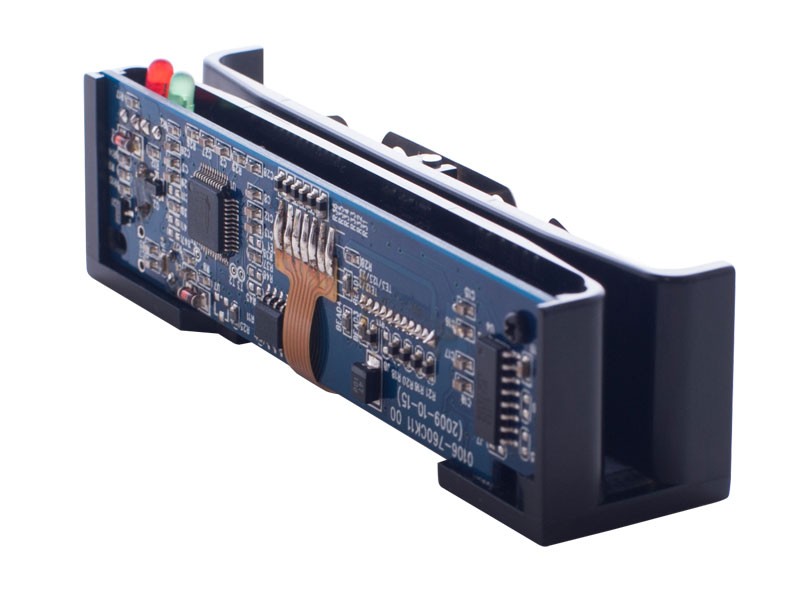

MMR is a Magnetic Stripe Reader module provides you with a cost-effective magnetic stripe reader to satisfy the POS industries needs.
MMR is a well designed magnetic stripe reader with badge length 90mm and the data format complies with ISO 7810-7813, JISII standards. It reads magstripe cards with range from 300 to 4000 Oersted.
MMR is available for USB (HID), KB Wedge and RS232.
Reading magnetic stripe card complied with ISO 7810~3 formats.
Reading magnetic stripe card complied with JISII(Option).
Magnetic stripe reader with badge length 9cm.
Card Reading Speed: 10 to 100 cm per second.
Reading 300 to 4000 Oersted cards
Support beep and LED for each stripe status indicator.
Parameter program software for Windows series version.
reading card data on single, dual, or triple track in one swipe
Magnetic Head Life 1,000,000 passes.
MMR
Compare to
Tech Specs
Specifications
Scan Rate
Magnetic Card
Tracks T1&T2&T3
100-1000mm/sec
IISO 7810-7813 and JISII
Decording Density T1/T2/T3: 210/75/210 BPI Capacity T1/T2/T3: 79/40/107 Characters
-
-
Smart detection, up to 500 scans
60 images per second
-
60 fps (at full resolution)
-
-
-
-
-
Smart detection, up to 500 scans
-
-
-
-
60 images
100-1000mm/sec
100 scans ±10%
-
-
-
-
-
-
-
-
Smart detection, up to 500 scans
100-1000mm/sec
-
-
-
60 images
100-1000mm/sec
Min frame rate > 8fps
-
50-500mm/sec
-
-
50-500mm/sec
-
-
-
-
RS-232, USB (HID, Virtual COM)
RS232, USB (HID, Virtual COM)
-
-
USB or RS-232 wired cable
-
-
-
-
Module only: UART/USB (HID, Virtual COM) Module with interface board: RS232/USB/KBW
-
a USB or RS-232 wired cable to a host
-
-
RS-232, USB (HID, Virtual COM)
TTL/KBW/RS232/USB
Module only: UART/USB (HID, Virtual COM) Module with interface board: RS232/USB(HID, Virtual COM)
-
-
-
-
-
-
USB 3.0 Type A(Host) x3, USB 3.0 Type C(Device) x1, HDMI x1, Ethernet port x1, Power jack port x 1
-
RS-232, USB (HID, Virtual COM)
TTL/KBW/RS232/USB
-
-
-
RS-232, USB (HID, Virtual COM)
TTL/KBW/RS232/USB
USB 2.0
-
-
USBx3,HDMIx1,RS232x1,LANx1(for Ethernet or PoE),GPIO x 2 (2-pin signal output, 2-pin power output)
-
-
-
-
